1DIN Alpine Halo and 2DIN Installation Kit with CAN to UART Interface for VW platforms (MIB-PQ - Seat, Skoda and Volkswagen) VW KIT-HALO-VW303
Kód: HO-KIT-HALO-VW303Detailní popis produktu

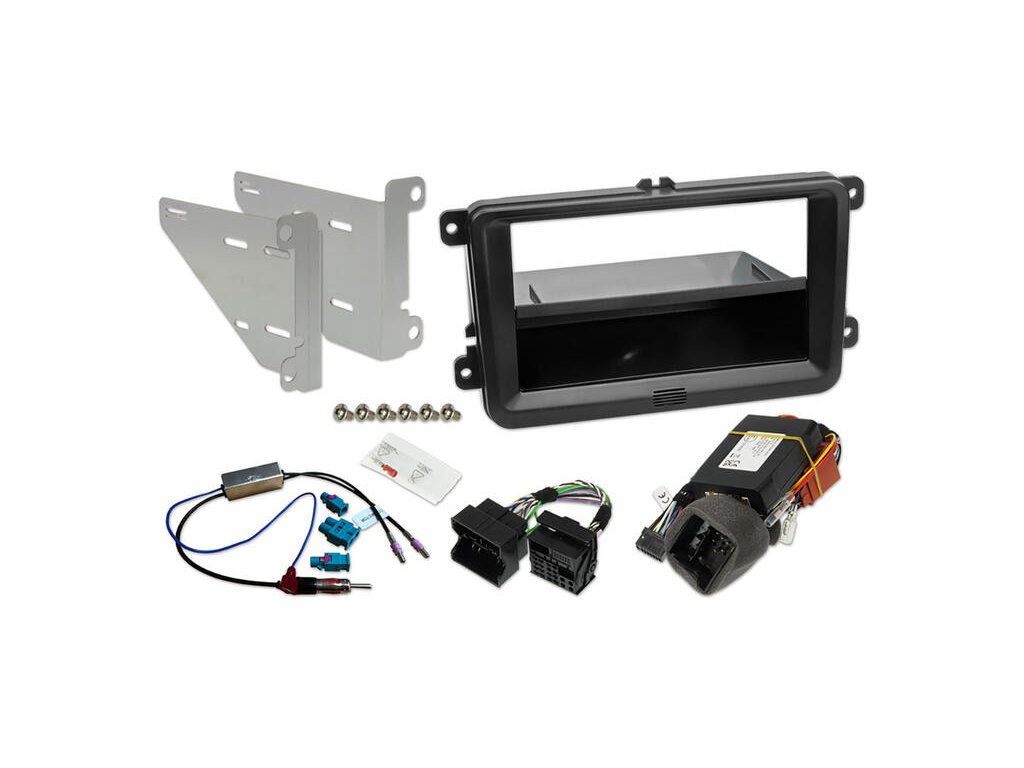

- The installation kit KIT-HALO-VW303 lets you perfectly integrate a 1DIN Alpine Halo system (INE-F904D, INE-F904DC, iLX-F905D, iLX-F115D) or 2DIN Head Unit such as the iLX-705D, INE-W720D or INE-W720DC into a compatible Volkswagen, Seat or Skoda vehicle.
- The KIT-HALO-VW303 includes a CAN to UART interface featuring support of the steering wheel remote control buttons (latest data protocol including SIRI and OK Google support). It also supports the small display in the instrument cluster (MFD), as well as the visual parking display (PDC) and air condition / heating display (HVAC). You get easy analog signal output from the CAN bus for ignition, parking brake, speed pulse and reversing signal.
- An antenna adapter with phantom feed and a power Quadlock adapter are included as well. You can even directly connect the original VW / Skoda / Seat microphone and reversing camera with the wiring harness.
- - Installation kit compatible for VW platforms (MIB-PQ - Seat, Skoda and VW)
- - CAN to UART interface with Steering wheel remote control (SIRI Ready) and instrument multi-function display (MFD) support
- - Visual Parking Display (PDC) and air-conditioning / heating display support
- - CAN to analog conversion for ignition (ACC signal), parking brake, speed pulse and reversing signal
- - Retention of original vehicle settings (interface settings adjustable in Alpine head unit)
- - Alpine vehicle-specific connection harness with Quadlock connector
- - Power Quadlock adapter inclusive
- - Retention of HVAC (Heating, Ventilation and Air Conditioning) and OPS (Optical Parking Sensor) display (if original available)
- - SIRI and OK Google support
- - Supports original vehicle amplifier, microphone and rear camera 2)
- - Includes antenna adapter with phantom feed
- - Including removeable 1DIN storage compartment for the installation of 1DIN head units in 2DIN radio slot.
- - Compatible Alpine Head Units: iLX-705D, iLX-F905D, iLX-F115D, INE-F904D, INE-F904DC, INE-W720D, INE-W720DC
- Compatible Cars (Maker<sup>1)</sup>, Model, Model year):
- - Volkswagen Amarok (2H) 03/2010 - 08/2016
- - Volkswagen Beetle (5C) 11/2011 - 05/2016
- - Volkswagen Caddy (2K / 2KN) 2010 - 05/2015
- - Volkswagen CC (3CC) 01/2012 - 11/2016
- - Volkswagen EOS (1F) 05/2006 - 05/2015
- - Volkswagen Golf VI (1K / 1KM) 11/2008 - 04/2013
- - Volkswagen Golf VI Cab. (1K / 1KM) 06/2011 - 2016
- - Volkswagen Golf Plus Facelift 01/2009 - 2014
- - Volkswagen Jetta VI (16) 01/2011 - 2016
- - Volkswagen Passat CC (35) 06/2008 - 2012
- - Volkswagen Passat B7 (36) 11/2010 - 10/2014
- - Volkswagen Polo V (6R) 03/2009 - 04/2014
- - Volkswagen Scirocco III (13) 08/2008 - 2017
- - Volkswagen Sharan II (7N) 09/2010 - 2017
- - Volkswagen T5 Facelift (7 H/E/J) 09/2009 - 06/2015
- - Volkswagen T6 (7 H/E/J) 07/2015 - 09/2019
- - Volkswagen Tiguan (5N) 04/2007 - 2015
- - Volkswagen Touran (1T / GP / GP2) 2010 - 04/2015
- - Skoda Fabia II (5J) 2010 - 10/2014
- - Skoda Octavia II (1Z) 01/2009 - 2013
- - Skoda Rapid (NH) 10/2012 - 03/2015
- - Skoda Roomster (5J) 2010 - 04/2015
- - Skoda Superb II (3T) 07/2008 - 06/2015
- - Skoda Yeti (5L) 08/2009 - 2015
- - Seat Alhambra (7N) 10/2010 - 2015
- - Seat Leon (1P/1PN) 03/2009 - 10/2012
- - Seat Toledo (KG) 03/2013 - 2015
- <sup>1)</sup> Only for cars with white MFD (Multifunctional display). Not compatible with radios with CAR button.
- <sup>2)</sup> No support for original RGB cameras
- Note: For cars with white MFD, if the car was not equipped with a screen before, it may be necessary to program the vehicle in order to enable the visualisation. Please consult with an authorised dealer or service workshop.
